Construction is a high risk industry for work-related musculoskeletal disorders. A multidisciplinary research team from RMIT worked with the Victorian Government’s Major Transport Infrastructure Program to assess and reduce the risk of work-related musculoskeletal injury in rail construction work.
A whole body system of wearable sensors was used to objectively measure risk factors for musculoskeletal injury while workers were performing their daily work tasks. Opportunities to reduce risks were identified and objectively measured. The research shows that musculoskeletal injury risk can be reduced by modifying the environment, redesigning methods of work and carefully selecting the tools and equipment to be used.
This video gives a short overview of RMIT's research into reducing musculoskeletal injury in the construction industry.
Construction workers are a high risk group for work-related musculoskeletal injury.
These injuries often involve extended periods of time off work and incur significant workers’ compensation costs.
Workers can suffer chronic pain and, in some cases, are unable to return to work.
These injuries are costly and damaging to employers, workers and their families.
Commonly affected body parts are the back, shoulder and wrist.
Understanding the risk factors for work-related musculoskeletal injury is important in order to be able to make improvements to the work environment and methods of work, including the equipment and tools used.
Lightweight, wearable sensors are now available, enabling trained technicians to reliably measure human movement to provide a more detailed understanding of the risk factors for musculoskeletal injury.
A team of researchers from RMIT used a whole body system of wearable sensors to capture information about risk factors inherent in five manual construction tasks.
steel-fixing,
jackhammering,
cable-pulling,
shotcreting, and
shovelling.
Researchers visited rail construction sites within the Victorian Government’s Major Transport Infrastructure Program.
Construction workers participated in the study by wearing sensors while performing their everyday work tasks and providing feedback on work methods, tools and equipment.
Detailed measurements of workers’ movements were taken.
This allowed the research team to identify those task elements that contribute significantly to the risk of work-related musculoskeletal injury.
Analysis of the data allowed the research team, in consultation with workers and employers, to identify opportunities to reduce the risk of work-related musculoskeletal injury. These focused on making improvements to the work environment and methods of work, including the equipment and tools used.
Using the wearable sensors, the researchers were able to assess alternative work methods, equipment and tools to see whether these can eliminate or significantly reduce the range, frequency or duration of potentially harmful postures and movements.
Some of the alternative approaches used simple, low technology devices to improve worker postures and movements.
For some tasks a novel approach was used to understand how risk factors can change depending on the height at which work is carried out.
This provided a detailed understanding of the physical characteristics of the tasks, as well as specific information about the best tool or work method to use when performing work at different heights.
Measuring human movement to understand risk factors for musculoskeletal injury provides important information that can be used to decide the best ways to control the risk of work-related musculoskeletal injury in the construction industry.
Wearable sensor technology can be used to measure and document improvements that can be made by making changes to the work environment and methods of work, including the equipment and tools to be used.
The challenge for the construction industry is to consult with workers to identify opportunities to reduce the risks of work-related musculoskeletal injury:
when designing and planning the work environment, layout and flow.
when designing methods of work, including the equipment and tools to be used, and
when selecting and purchasing tools and equipment that will be used to perform a work task.
This video describes how three different tools impact the risk of musculoskeletal injury to the back, wrist and shoulder when fixing steel at different work heights.
This video describes how three different tools impact the risk of musculoskeletal injury to the back, wrist and shoulder when fixing steel at different work heights.

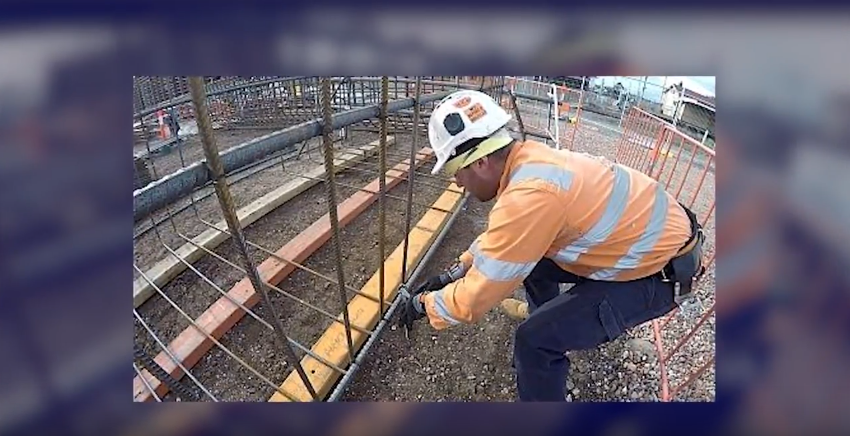

Placing and securing steel bars used in reinforced concrete involves heavy manual materials handling and work in awkward postures.
Researchers from RMIT used wearable sensors to understand the risk factors for work-related musculoskeletal injury for construction workers who fix steel reinforcement bars.
The research showed hotspots for musculoskeletal injury in steelfixing are the back, the shoulder and the wrist. Steelfixing is typically carried out using a pincer cutter tool which is used to grasp, twist and then cut the two ends of the fixing wire.
When working at ground level using this tool, a steel fixer needs to bend their back and reach down.
Over long periods of time, poor back postures can lead to lower back injury.
Now let’s look at the same steel-fixing action using a long handled stapler tool, instead of conventional pincer cutters.
The long handled stapler tool reduces the need to reach down when working at ground level and introduces significantly less bending of the lower back.
While this tool reduces back movement when working at ground level, some back bending is still required in addition to the rapid and forceful movement needed to use the tool.
Repetitive risk movements can be hazardous when using pincer cutters to fix steel, because it involves twisting and turning.
Repeating this action over a working day increases the risk of injury.
A power tying tool was compared to the conventional pincer cutter tool.
The tool mechanically wraps, twists and releases the wire tie when the trigger is pulled.
The hazardous twisting action of the wrist was significantly reduced by the power tool – an important improvement in reducing wrist, forearm and shoulder injuries.
But while this tool reduces excessive manual wrist movement, it does not reduce the need to bend while working below knee level.
However, using this type of power tool may require static holding of the tool for long periods of time and the tool does not help to improve back or shoulder postures when working at very low and very high positions.
Working overhead uses awkward shoulder postures and movements that may lead to shoulder injury.
Working overhead should be avoided wherever possible.
However, if working overhead cannot be eliminated, the long-handled stapler tool reduces awkward shoulder movements, reducing the risk of shoulder injury.
Ergonomic tools can make a difference in reducing the risk of musculoskeletal injury in steelfixing.
But the tools need to fit the job that is being done.
Although the long handled tool reduced the need to bend the back, while working at ground level, it requires the use of a forceful pushing and pulling action to fix and twist the wire tie.
And although the power tool reduces excessive manual wrist movement, it does not reduce the need to bend while working below knee level.
Wherever possible, work should always be designed to avoid awkward postures, excessive bending of the back or work above shoulder height.
However, where this is not possible, selecting the best tool for the job can reduce the risk of injury.
The challenge for the construction industry is to encourage the development and use of new methods and tools that can improve postures and movements and reduce the risk of work-related musculoskeletal injury.
This video describes how changing work processes and using modified equipment can reduce the risk of musculoskeletal injury.
This video describes how changing work processes and using modified equipment can reduce the risk of musculoskeletal injury.
Many tasks in construction involve risk factors for musculoskeletal injury.
For example, working in awkward postures, being exposed to vibration, performing repetitive physical actions or needing to use excessive force.
Musculoskeletal injuries are often associated with poorly designed work or equipment.
Researchers from RMIT used wearable sensors on workers to understand the risk factors for work-related musculoskeletal injury in manual construction tasks.
Let’s look at cable-pulling.
Cable-pulling involves feeding and pulling cables through an underground conduit system to the required length and location.
Pulling cables can involve repetitive bending to grasp the cable at ground level and pull it upwards.
High force is involved in pulling the cable through the conduits. This force increases with the length and diameter of the cable.
Cable-pullers adopt hazardous postures in order to maximise their capacity to pull long cables.
The combination of awkward postures, high force exertion, and a repetitive bending and pulling action increases the risk of injury to the back.
Wherever possible, mechanised methods of cable pulling should be used.
A truck mounted winch can be used to reduce manual pulling. Also, the cable drum placed on a spindle or frame can be used to ease the run out. However, access, egress and work location can make using large equipment difficult and restrictive.
In these situations, smaller, mechanised cable pulling devices should be used.
However, if this is not possible, simple, cost-effective ways to modify tasks or equipment can also reduce musculoskeletal injury risk.
A simple trestle was manufactured to guide the cable at hip height.
At this height the cable was more accessible and the cable puller did not need to bend and reach down repeatedly to grasp and pull the cable.
The trestle not only improved back postures and movements, but enabled the worker to complete their task in a much safer, upright posture.
This demonstrates the potential for relatively simple modifications of tasks and equipment to reduce hazardous work postures.
However, where high forces need to be exerted to pull cables through, the preference is for this to be done mechanically, not manually.
Now let’s have a look at shovelling.
Shovelling is widely used in construction to move material manually.
Risk factors inherent in shovelling include:
Repeated bending of the back, often for long periods of time.
Repeated lifting and moving of heavy loads.
Additional force exertion to work on hard ground services.
Stretching to reach the material being shovelled, and
Sustained gripping of the shovel handle for long periods of time.
This poses the risk of injury to the back and wrist.
A redesigned shovel handle was developed to enable the worker to maintain a straight position of the wrist.
The redesigned handle produced significantly less bending of the back and reduced shoulder movement, particularly when tossing the load to one side.
The left wrist also remained straighter in all directions.
Understanding the risk factors for musculoskeletal injury in manual construction tasks can help to identify improvements.
In many instances, inexpensive and simple modifications to work processes or equipment can significantly reduce the risk of injury.
The challenge for the construction industry is to understand musculoskeletal injury risk factors inherent in everyday construction tasks and to identify opportunities for improvements.
This study showed how creative and simple changes to work processes or equipment can significantly reduce musculoskeletal injury risk.
This video describes how the adoption of alternative technologies and systems of work can reduce the risk of musculoskeletal injury in some high risk manual construction tasks.
This video describes how the adoption of alternative technologies and systems of work can reduce the risk of musculoskeletal injury in some high risk manual construction tasks.
Construction work involves many manual work tasks that expose workers to the risk of musculoskeletal injury.
Some work tasks involve awkward postures, performing repetitive physical actions, the use of excessive force and being exposed to vibration.
All of these factors contribute to the risk of injury to the musculoskeletal system.
The parts of the body most affected by musculoskeletal injury are:
the back
the shoulder
the knee
the ankle, and
the wrist.
Researchers from RMIT used wearable sensors to understand the risk factors for work-related musculoskeletal injury in manual construction tasks, that included jackhammering and shotcreting.

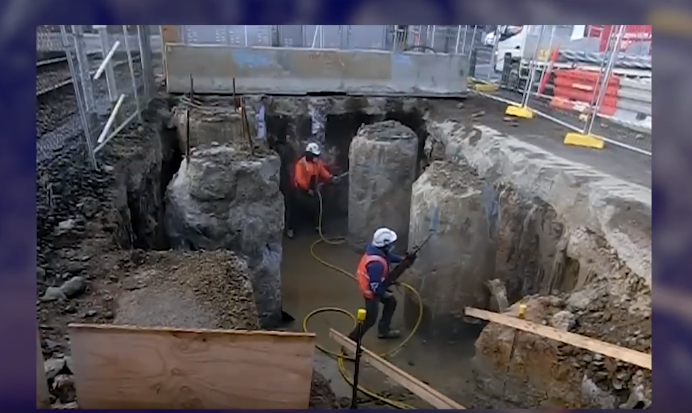

Data was collected while breaking down the top section of concrete piles using a jackhammer.
This work involved bending the back and the use of excessive force when lifting the jackhammer into position and when maintaining the jackhammer in position over an extended period of time.
Workers were also exposed to noise, dust and vibration during jackhammering.
The potential for injury to the back in mechanical pile breaking with a jackhammer is high.
In this case, an integrated de-bonding material, was to be incorporated in the pile around the steel bars, above the cut-off level before the concrete was poured.
This would reduce the duration of jackhammering for each pile.
However, if the de-bonding material is not correctly installed when the concrete piles are poured, pile-breaking involves significantly greater time and increased injury risk.
Alternative, active pile breaking technologies that do not require mechanical breaking with a jackhammer can also be considered in the design of work systems.
However, these need to be incorporated during the design and planning stages of work.
The RMIT team also collected data for the task of shotcreting, which involves using compressed air to spray concrete onto a surface at high velocity to create a dense and strong concrete layer.
Shotcreting involves repetitive forward leaning movements that coincide with the pumping cycle. This work also involves awkward arm, wrist and hand postures that result from grasping and holding the hose in front of the operator’s body or over their shoulder for sustained periods to direct and control the flow of concrete.
Muscle activity measurements showed high levels of force exertion to lift and hold the shotcreting hose over the operator’s shoulder, while their arms were also raised to hold and control the hose in this position.
Shotcreters were also observed to work on rough and uneven ground surfaces and frequently drag the concrete and compressed air hoses for long distances as they moved position.
The provision of firm and flat work surfaces, attention to good housekeeping and assistance with moving equipment can also reduce the risk of slips, trips and falls, and the potential for strain and sprain injuries.
The potential for injury to the back in manual shotcreting was found to be high.
Excavator mounted hoses have been trialled and can reduce the need for someone to hold the hose while concrete is applied.
Robotic shotcreting equipment is also commercially available.
The potential benefits of adopting or adapting mechanised shotcreting methods to reduce physical work demands and injury risks for shotcreters are significant.
Where possible, mechanised options should be considered when designing safe work processes for shotcreting.
Providing a safe system of work involves careful planning and consideration of the interaction between workers, their equipment, the materials they are using and the broader work environment.
Effective control measures for the risk of work-related musculoskeletal injury should be identified and specified during the design stage of a project, when important decisions that affect workers’ health and safety are made.
Considering ways to change systems of work to reduce the risk of work-related musculoskeletal injury is an important aspect of improving the construction industry’s health and safety outcomes and ensuring construction workers are able to enjoy productive and healthy working lives.
